SRI03 Bi-metal
Oilless bearing or low-oil-content lubrication is applied to the conditions where is impossible or difficult to be lubricated. Maintenance free and reliable operation avoids risk of insufficient oils lubricating.
SRI03 Bi-metal
Products List
Products

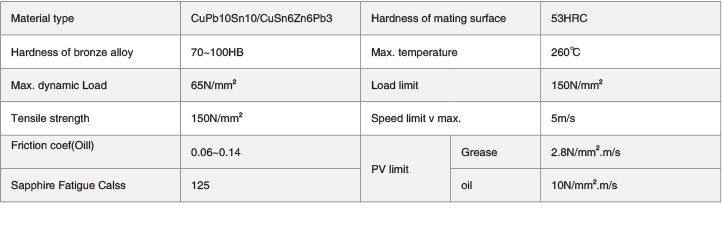

SRI03 Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy （CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu）lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
Oilless Elements
SRI02 IS TRIPLE-LAYER SELF LUBRICATING MATERIAL THAT CAN FILI MODIFIED POM PLASTIC AS SU RFACE LAYER; IT IS BENIGNANT BOUNDARY ...
CASTING BRONZE BEARING PLUGGED WITH GRAPHITE, ROHS STANDARD, NO WASTE OIL RECYCLING IS ENVIRONMENTALLY FRIENDLY.
Application
Angineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley...
Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine,
And Plunger pump friction plate, gear pump friction plate...

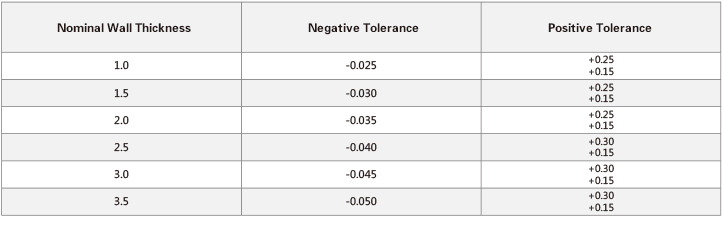

Tolerance of Wall Thickness

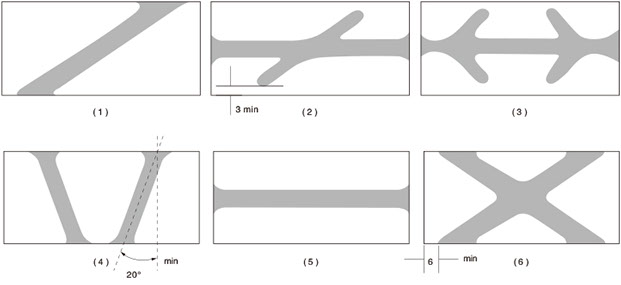

Oil Groove

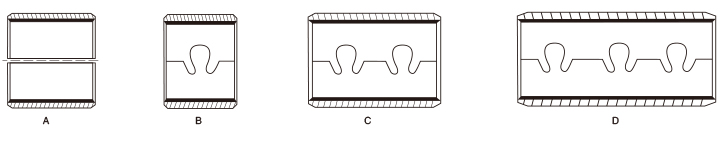

Buckle Form
Technology
