SRI05 Casting Materials
Oilless bearing or low-oil-content lubrication is applied to the conditions where is impossible or difficult to be lubricated. Maintenance free and reliable operation avoids risk of insufficient oils lubricating.
Products

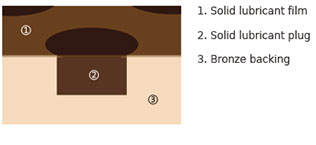

Oilless or low-oil-contained lubrication means less fuel without refueling, the goal of our research is to ensure that the bearing in such conditions can have good performance and extend its life as much as possible. When self-lubricating bearings are running, the solid lubricants on its surface form a lubricating film by mutual friction .It avoids direct contact between the workpiece and thus well protected against wear parts to extend the service life of the bearings and the workpiece.
SRI02 IS TRIPLE-LAYER SELF LUBRICATING MATERIAL THAT CAN FILI MODIFIED POM PLASTIC AS SU RFACE LAYER; IT IS BENIGNANT BOUNDARY ...
CASTING BRONZE BEARING PLUGGED WITH GRAPHITE, ROHS STANDARD, NO WASTE OIL RECYCLING IS ENVIRONMENTALLY FRIENDLY.
Material Properties
●Allows maintenance-free and long-life operation;
●Suitable for high static and dynamic loads;
●With low and smoothly coefficient of friction and without stick-slip effects;
●Suitable for dirty, corrosion, impact load and edge loading;
●The base material provided a good shock-absorbing capacity;
●Can be used over a large temperature range;
●Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
●With low wear rate and long life service.
Contact
Bearing Feature
The design nowadays requires tremendous demands fro self-lubricating bearing material.Even in the extremely severe work condition and maximum load conditions, it also requires maintenance-free. With the cost of increasing , business equipment reliability and plant operation is also increasing. Metal self-lubricating bearings to meet the long-term maintenance-free and under the conditions of self-lubricating, thus making the design of reliable long-term self-lubricating system possible. Metallic self-lubricating bearing material can be widely used in high load at low speed rotation conditions, swing and linear reciprocating motion, but also applies to the position where traditional lubrication can not be achieved or the ocassion greasing is prohibited , or in special conditions such as dust, shock under load or radiation conditions require long-term and stable use.
Office:1210/8 No.999 Dongxiu Rd. Pudong Shanghai 200127 China
Manufacturing:Ganyao Industrials Park, Jiashan, Zhejiang, China
PH: +86 21 68458332
FAX: +86 21 68459338
Email: info@sribearings.com
Http://www.sribearings.com
Characteristics

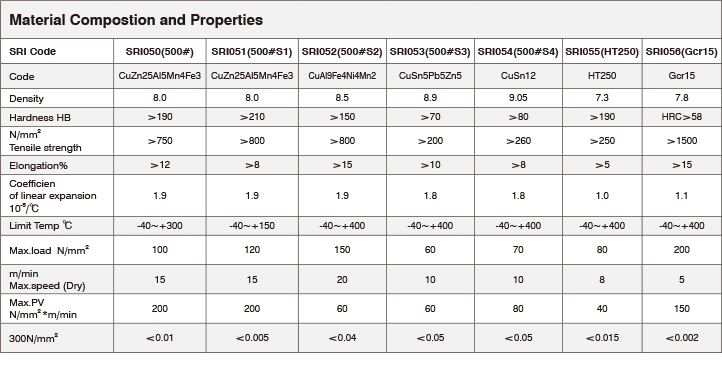

Materials
International Table

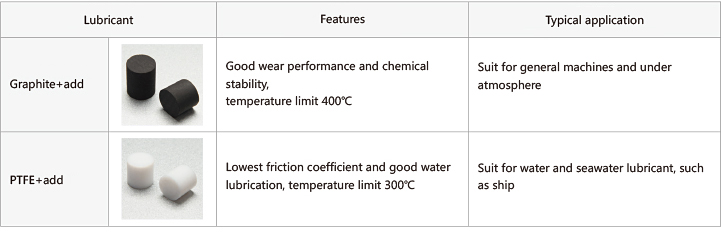

Solid Lubricant
This bearing is a combination of wear resistance and self-lubricating properties of solid copper alloy body of lubricants to use in the process without refueling maintenance. Products are widely used in high load, intermittent or oscillating motion, such as automotive products line, water wheels machine, a reservoir / incident doors, plastic machinery, punch peripherals. Depending on the conditions, the material can be provided with various types of copper alloy.
